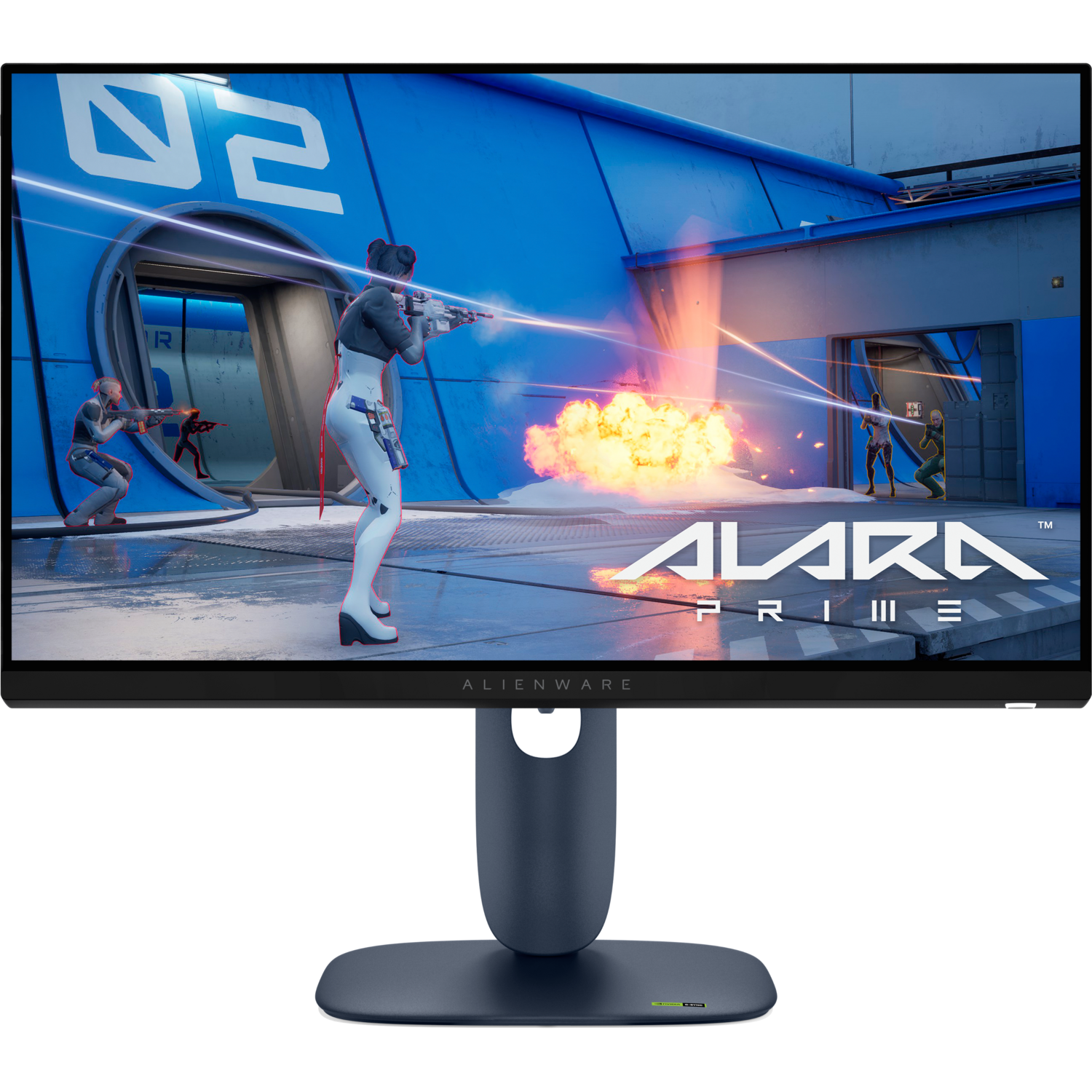

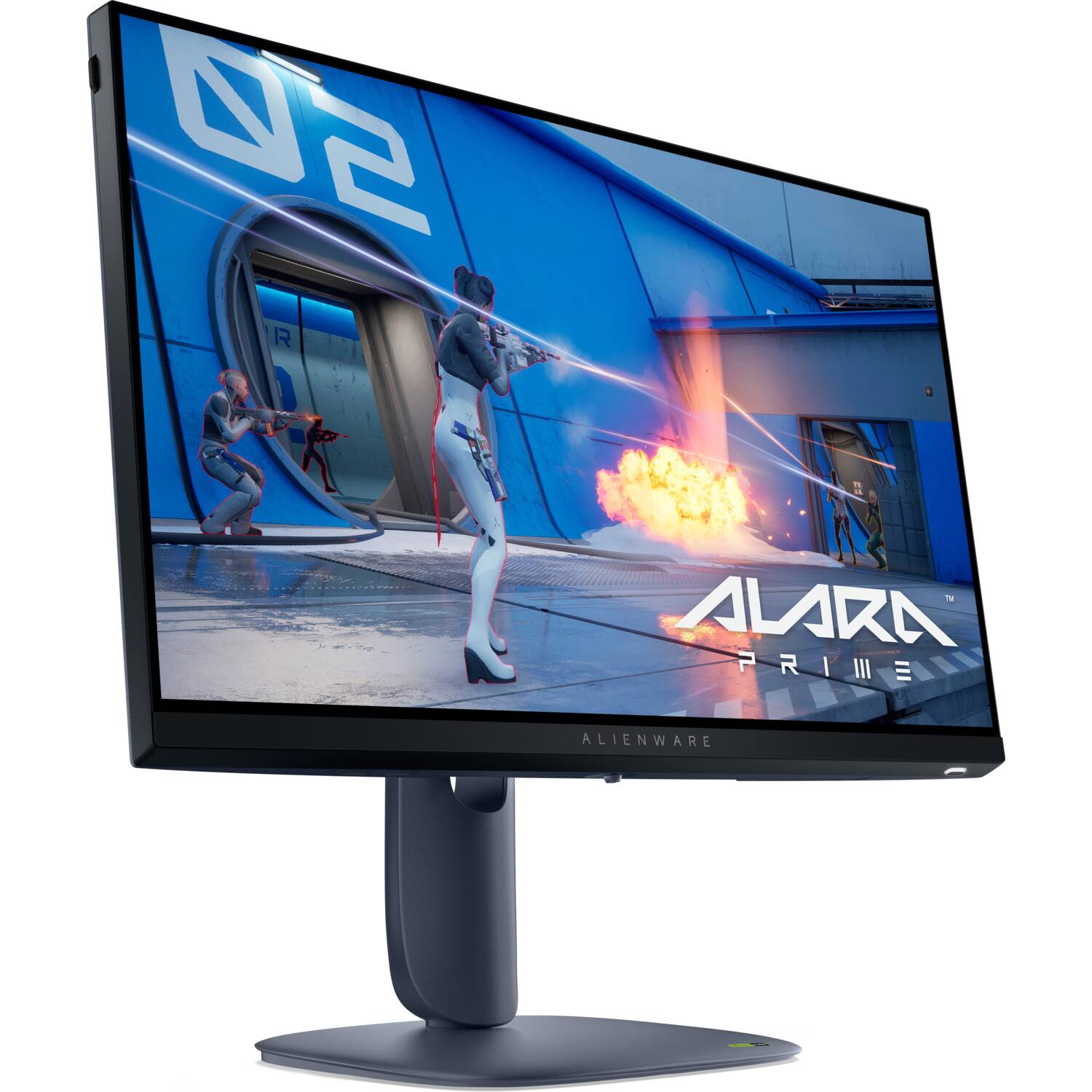

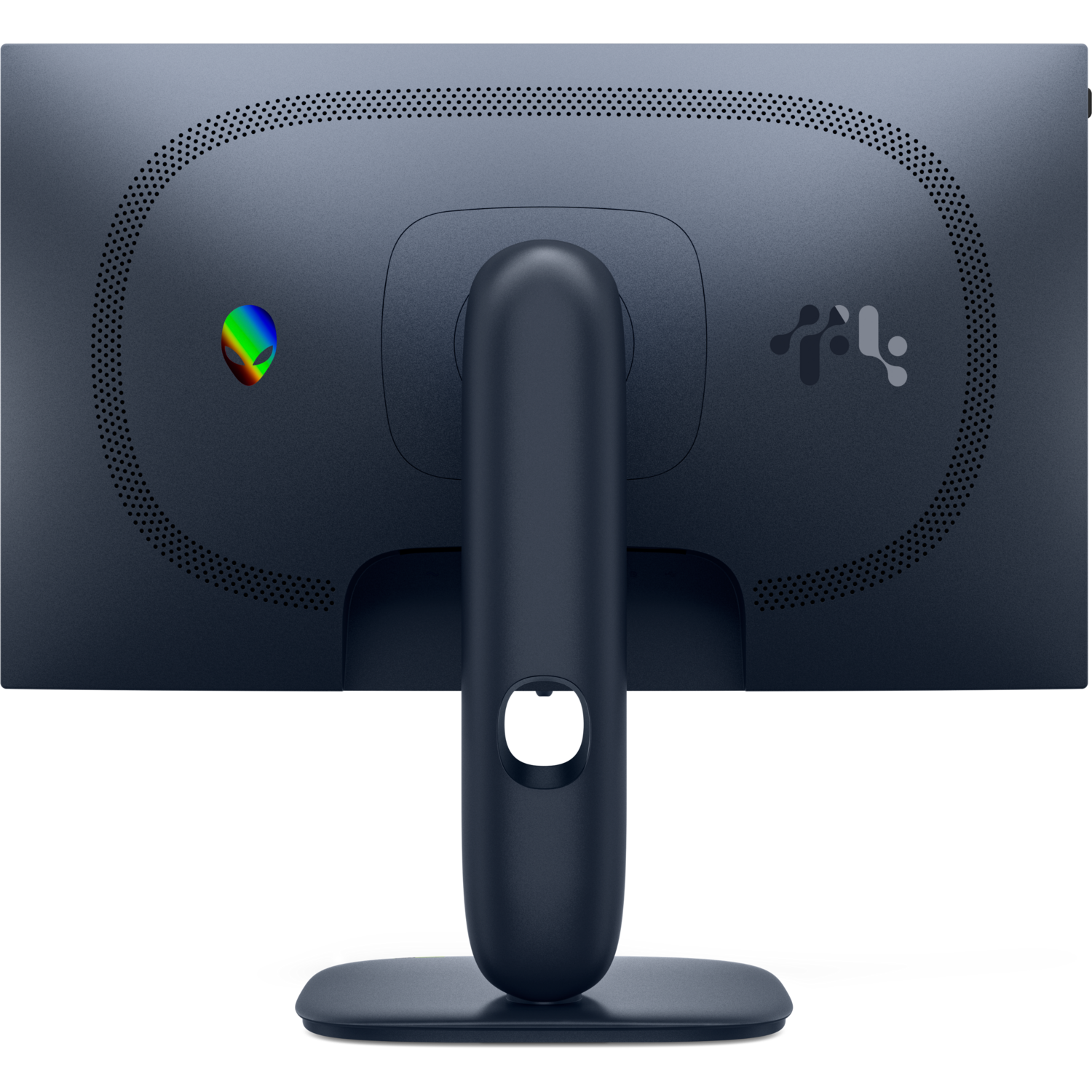

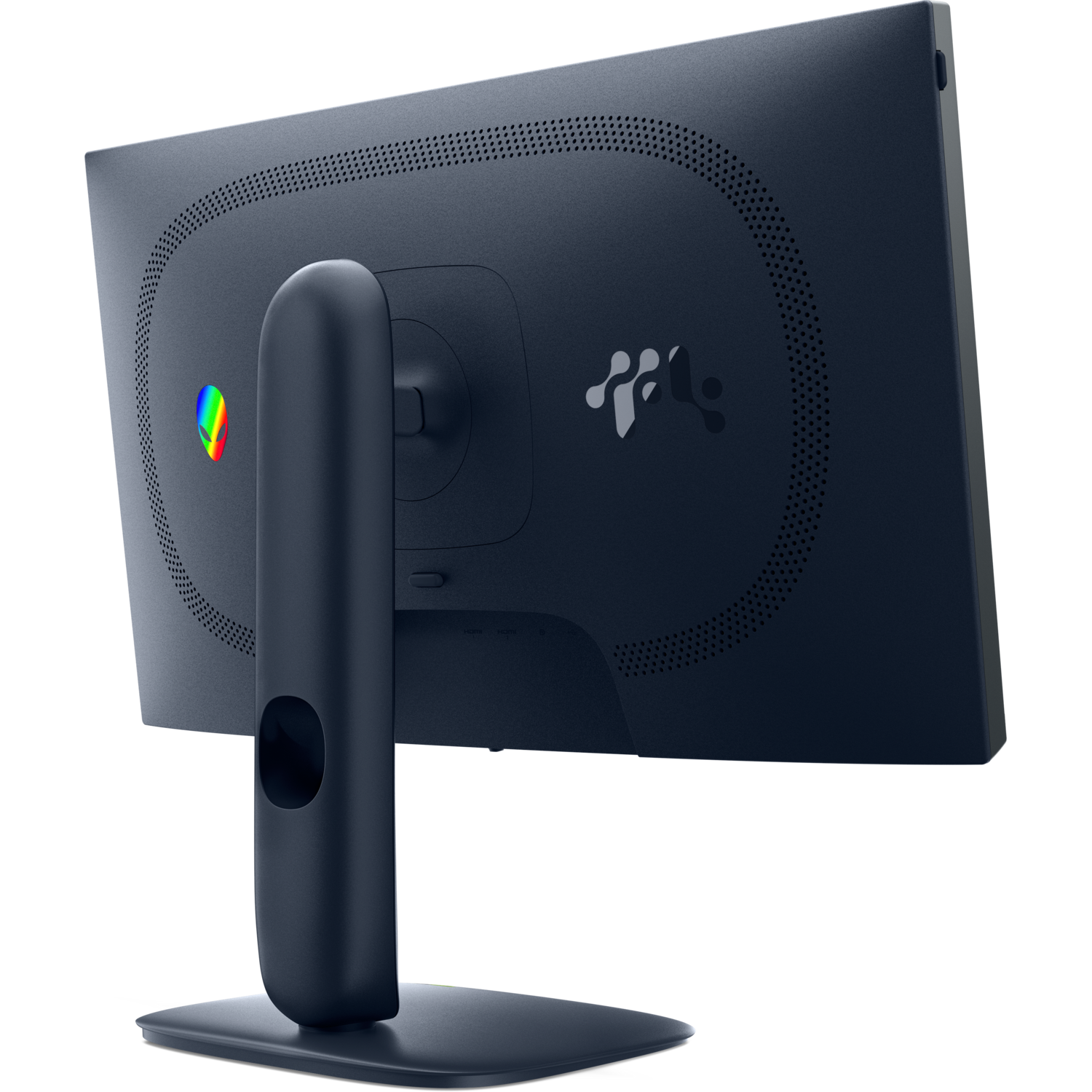

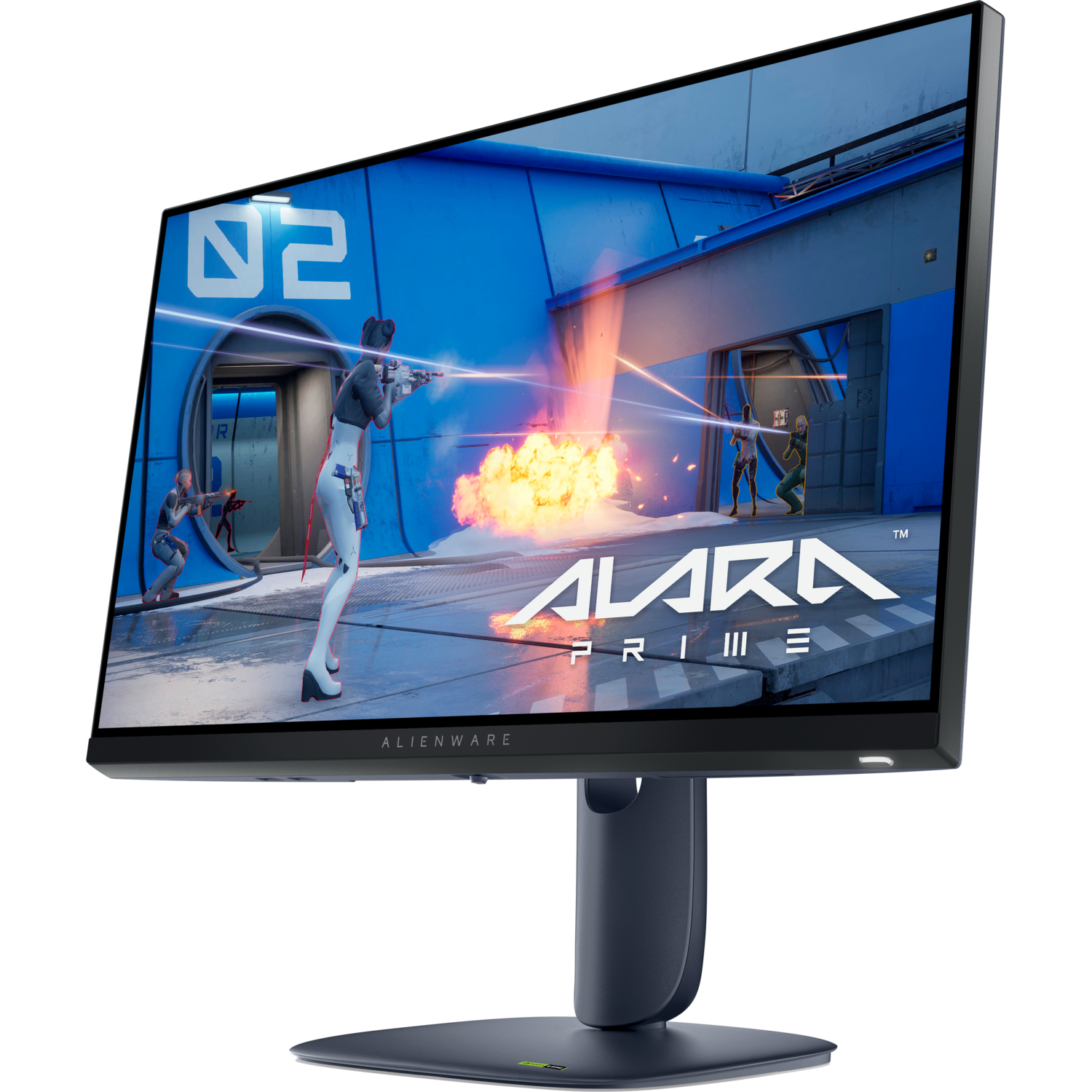

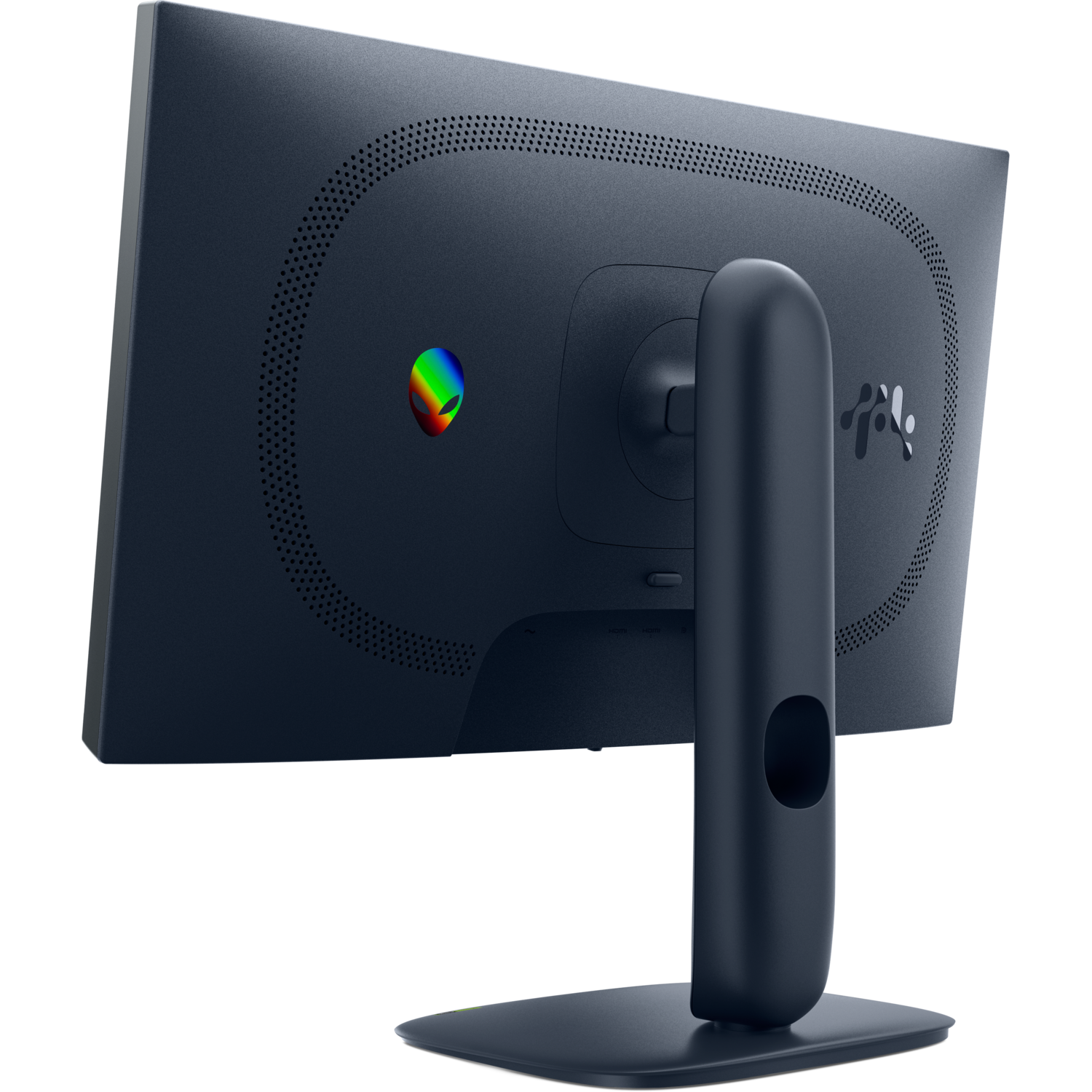

Alienware 25 AW2525HM 320Hz Gaming Monitor
PRODUCT DESCRIPTION
Alienware 25 320Hz Gaming Monitor AW2525HM (210-BSCL) - 3 Years Local Warranty
320 Hz Fast IPS for Competitive Play
The Alienware 25 AW2525HM pairs a 24.5-inch 1920 x 1080 Fast IPS panel with a 320 Hz refresh rate over DisplayPort (255 Hz over HDMI) and a 0.5 ms GTG response time, sized and tuned for esports titles where every frame counts.
Tear-Free with Any GPU
NVIDIA G-SYNC Compatible, AMD FreeSync Premium and VESA AdaptiveSync keep motion smooth and tear-free, while 400 cd/m² brightness and 99% sRGB coverage keep colours accurate between matches.
Fully Adjustable Stand
Height (110 mm), tilt, swivel and pivot adjustment, a VESA 100 x 100 mount and two USB 5Gbps Type-A ports (one with BC1.2 charging) make it easy to fit into any gaming setup.
Setting up a gaming room, esports venue or studio? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Alienware AW2525HM Datasheet — Technical Specifications
General
| Product Name | Alienware 25 320Hz Gaming Monitor - AW2525HM |
| Model | AW2525HM |
| Dell SKU | 210-BSCL |
| Product Line | Alienware gaming monitors |
| Local Warranty (Singapore) | 3 years Dell Limited Hardware and Advanced Exchange Service, supplied by SourceIT with a GST invoice |
| Screen Size Class | 25" |
| Viewable Screen Size | 24.5" |
| Screen Mode | Full HD |
| Panel Technology | Fast IPS |
| Backlight Technology | LED Edgelight System |
| Features | sRGB, Anti-glare, Security Lock, Cable Lock Slot, Arsenic-free Glass, Mercury-free |
| Glass Hardness | 3H |
Display
| Maximum Resolution | 1920 x 1080 |
| Standard Refresh Rate | 320 Hz |
| Maximum Preset Resolution | 1920 x 1080 at 255Hz (HDMI), 1920 x 1080 at 320Hz (DisplayPort) |
| Response Time Details | 1ms GTG, 0.5ms GTG |
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m2 |
| Native Contrast Ratio | 1,000:1 |
| Colour Gamut | 99% sRGB (CIE 1931) |
| Colour Supported | 16.7 Million Colours |
| Tearing Prevention Technology | NVIDIA® G-SYNC® Compatible, AMD FreeSync™ Premium, VESA AdaptiveSync |
| Pixel Pitch | 0.28290 mm x 0.28020 mm |
| Pixel Per Inch (PPI) | 90 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| HDCP Supported | Yes |
Connectivity
| Video port | 2 HDMI ports (HDCP 1.4 & 2.3) (Supports up to FHD 1920 x 1080, 255 Hz, TMDS, HDR, VRR as per specified in HDMI 2.1), 1 DisplayPort 1.4 (HDCP 1.4 & 2.3) port (Supports up to FHD 1920 x 1080, 320 Hz, HDR) |

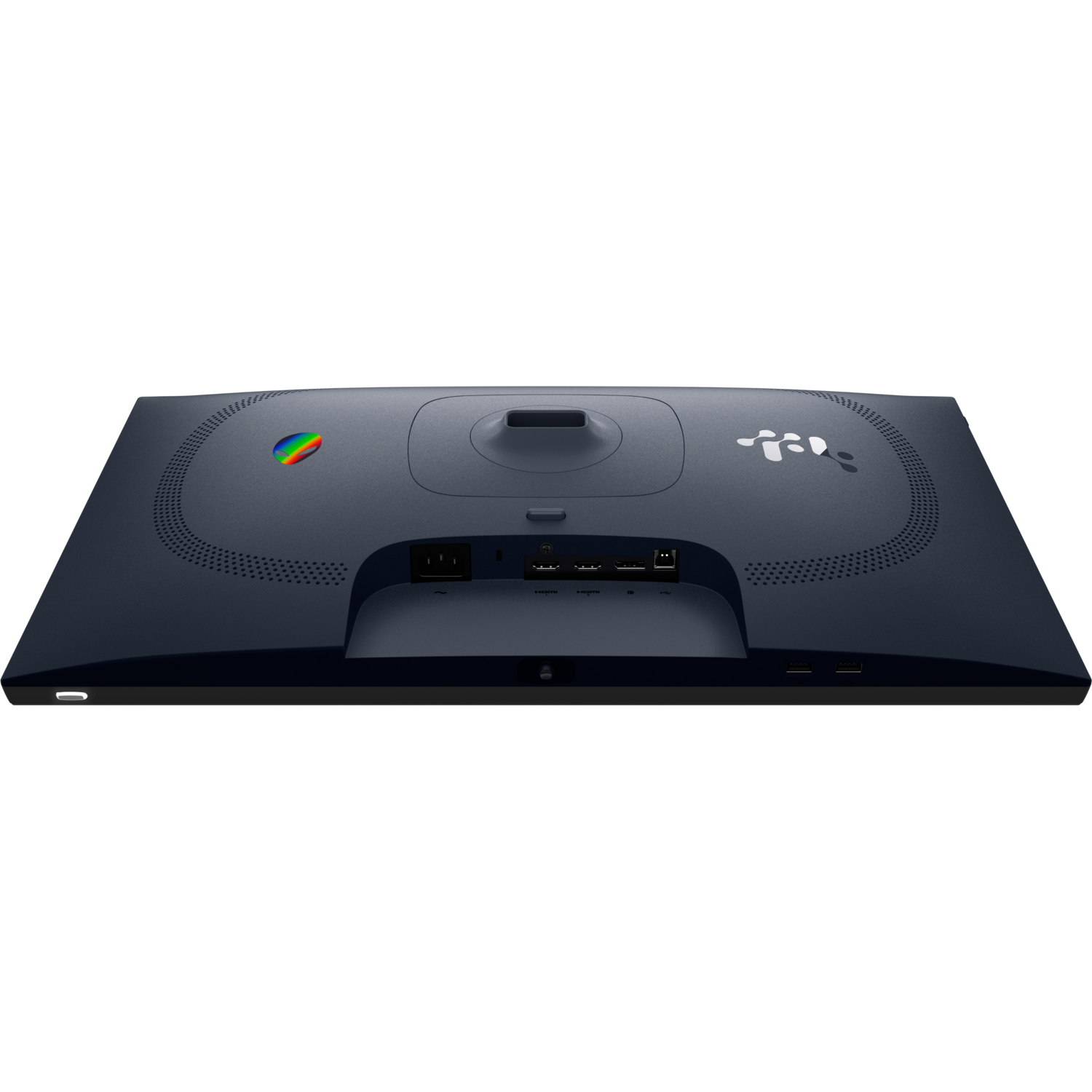

| USB port | 1 USB 5Gbps Type-B upstream port, 1 USB 5Gbps Type-A downstream port, 1 USB 5Gbps Type-A downstream port with BC1.2 power charging |
| Built-in Devices | Not Applicable |
Ergonomics
| Adjustable Stand | Yes |
| Stand Adjustments | Swivel, Height, Tilt, Pivot |
| Maximum Adjustable Height | 110 mm |
| Tilt Angle | -5° to 21° |
| Swivel Angle | -20° to 20° |
| Pivot Angle | +/-90° |
| VESA Mount Standard | 100 x 100 |
Power
| Input Voltage Range | 100V AC to 240V AC |
| Frequency | 60 Hz, 50 Hz |
| Voltage Current | 1.50 A |
| Operating Power Consumption | 18.10 W |
| Standby Power Consumption | 0.5 W |
| Off-Mode Power Consumption | 0.3 W |
| Maximum Power Consumption | 65 W |
Physical
| Height (without stand) | 329.5 mm |
| Width (without stand) | 555.59 mm |
| Depth (without stand) | 68.89 mm |
| Height with Stand | 500.73 mm |
| Width with Stand | 555.59 mm |
| Depth with Stand | 206 mm |
| Compressed Height with Stand | 390.73 mm |
| Extended Height with Stand | 500.73mm |
| Bezel Width (Top / Bottom / Left / Right) | 5.92 mm / 20.96 mm / 6.21 mm / 6.21 mm |
| Stand Height / Width / Depth | 411.80 mm / 240.00 mm / 206.00 mm |
| Weight (Approximate) | 3.69 kg |
| Weight with Stand (Approximate) | 6.07 kg |
| Product Colour | Interstellar Indigo |
Environmental
| Operating Temperature Range | 0°C to 40°C |
| Non-operating Temperature Range | -20°C to 60°C |
| Operating Humidity Range | 10% to 80% (Non-condensing) |
| Non-operating Humidity Range | 5% to 90% (Non-condensing) |
| Maximum Operating Altitude | 4999.94 m |
| Maximum Non-operating Altitude | 12192 m |
Certifications
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Compatibility & Software Support
PC Connection
Connect a gaming PC over DisplayPort 1.4 for the full 320 Hz, or over HDMI for up to 255 Hz at 1920 x 1080. The USB 5Gbps Type-B upstream cable (included) enables the two Type-A downstream ports.
Mounting
The stand detaches for VESA 100 x 100 mm mounting on a monitor arm or wall bracket.
Typical Use
PC gaming, esports practice, streaming set-ups and high-refresh creative work where fast motion and accurate colour matter.
Package Contents & Alienware Monitor Ordering Information
In the Box
Dell Alienware AW2525HM Widescreen LED Monitor, Stand, Alienware Sticker, QR Card, Safety, Environmental, and Regulatory Information, Power cable, 1 x DisplayPort-DisplayPort 1.4 cable - 1.80 m, 1 x HDMI 2.1 TMDS cable - 1.80 m, 1 x USB 5Gbps Type-A to Type-B cable - 1.80 m.
Alienware Gaming Monitors
| Model | Key feature |
| AW2525HM (this listing) | 24.5" FHD Fast IPS, 320 Hz |
| AW2725DM | 27" QHD Fast IPS, 180 Hz |
| AW2725D | 27" QHD QD-OLED, 280 Hz |
| AW2725DF | 27" QHD QD-OLED, 360 Hz |
| AW2725QF | 27" IPS, 4K 180 Hz / FHD 360 Hz |
| AW2725Q | 27" 4K QD-OLED, 240 Hz, 166 PPI |
| AW3225QF | 32" 4K QD-OLED curved, 240 Hz |
| AW3425DW | 34" UWQHD QD-OLED curved, 240 Hz |
Datasheet & Downloads
| Manuals & drivers | AW2525HM manuals and documents on Dell Support |
| Dell product page | AW2525HM on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AW2525HM.
Frequently Asked Questions — Alienware AW2525HM
What refresh rate does it support?
Up to 320 Hz at 1920 x 1080 over DisplayPort 1.4, and up to 255 Hz over HDMI.
Does it work with G-SYNC and FreeSync?
Yes. Dell lists NVIDIA G-SYNC Compatible, AMD FreeSync Premium and VESA AdaptiveSync.
Does it have built-in speakers?
No. Dell lists no built-in devices for this model, so use headphones or desktop speakers connected to your PC.
Can it be wall- or arm-mounted?
Yes, it is VESA 100 x 100 compatible.
What warranty do I get?
3 years Dell Limited Hardware and Advanced Exchange Service, supplied locally by SourceIT with a GST invoice.
