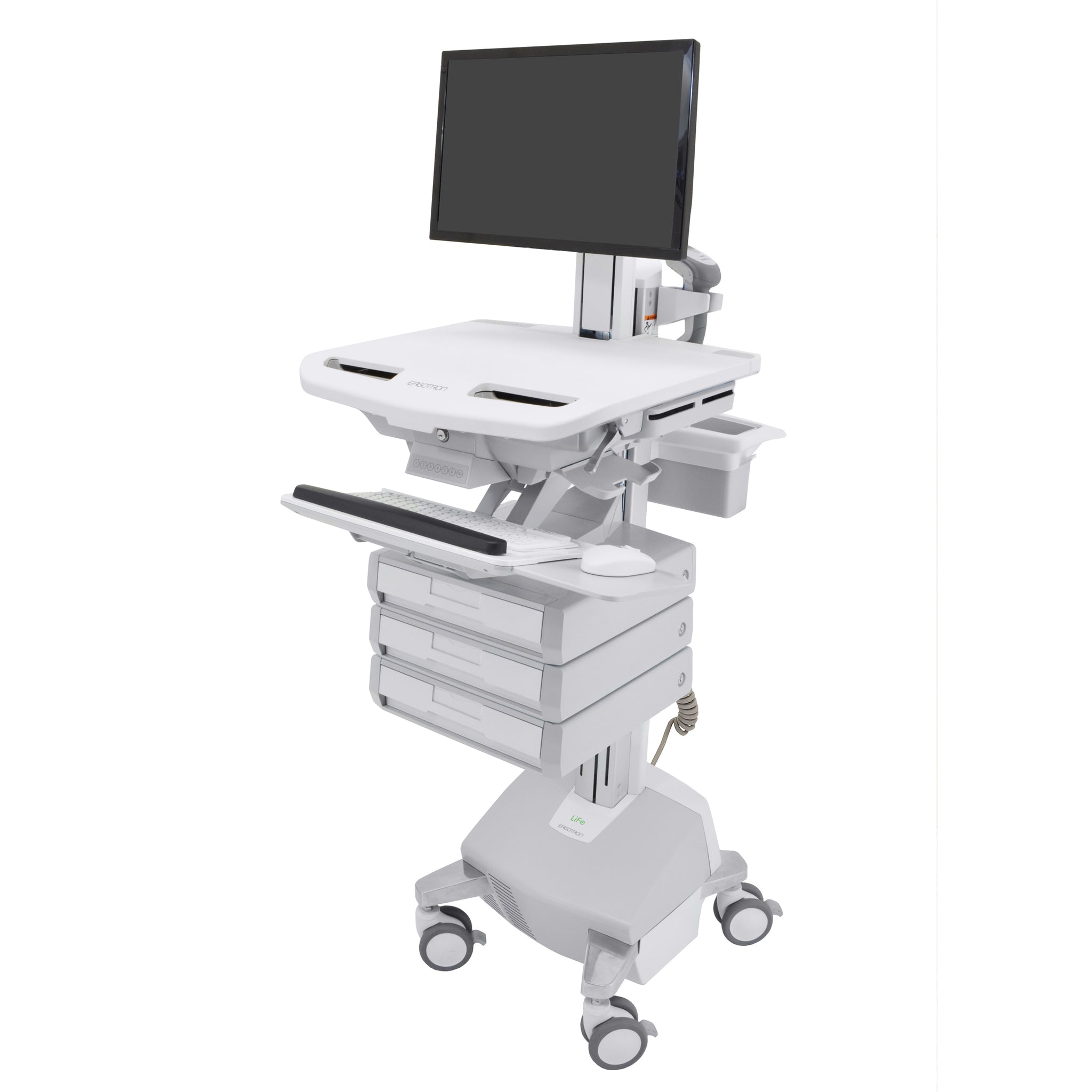

Ergotron StyleView® Cart with LCD Pivot, LiFe Powered, 3 Drawers (1x3), UK (SV44-1332-3)

Stay productive and on the go with our LiFe power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication with variable-length PIN access for users.

GTIN: 00698833056440
Part Number: SV44-1332-3
Description: StyleView Cart with LCD Pivot, LiFe Powered, 3 Drawers (1 large drawer x 3 rows)
TAA (Trade Agreements Act) compliant

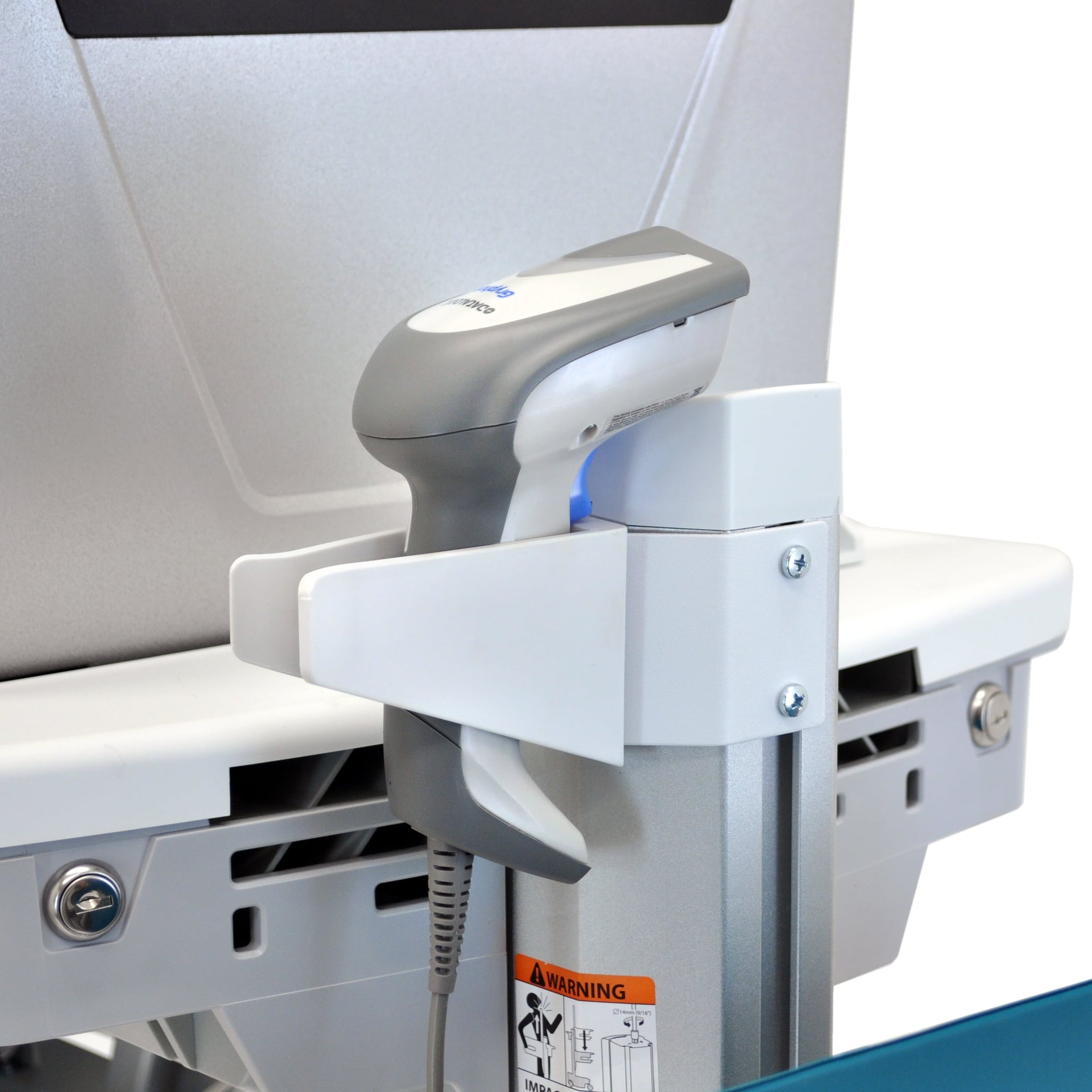

Includes auto-locking drawer system (ADS), primary single drawer, two supplemental single drawers, drawer dividers, travel stop, LCD pivot, worksurface, CPU lock, secure CPU compartment, four-port USB hub, scanner holder bracket, mouse holder, wrist rest, back-tilt keyboard tray, keyboard lights, left/right mouse tray, rear handle, storage basket, cable storage, four casters (lockable, 1 tracking function), single-battery 45 Ah LiFe power system, coiled cord, integrated AC outlets, power system user interface
* Total maximum load on height-adjustment assembly = 33 lbs (15 kg). This is the sum of the following components: LCD pivot = 5–11 lbs (2.3–5 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); large drawer ≤ 2 lbs (1 kg)
Note: Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers—contact Ergotron for details
Note: If the combined LCD and CPU weight is greater than 23 lbs (10.4 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)
† LCD and worksurface adjust 16" (41 cm) in tandem; LCD Arm adjusts 5" (13 cm) independently; maximum LCD height adjustment = 21" (53 cm)
Portrait screen orientation may be incompatible with widescreen displays > 19"
Cart may be fitted with up to five rows of standard-height drawers. Vertical adjustment range is affected by the number of drawer rows: 0–2 rows = 20" (51 cm); 3 rows = 16" (41 cm ); 4 rows = 12" (30 cm); 5 rows = 8" (20 cm)
Cart may be fitted with up to three rows of tall drawers
Shipping Dimensions: 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
§ Warranty: Five years for cart’s mechanical components, two years on power module; five years on LiFe battery, including three-year capacity guarantee

True Ergonomics

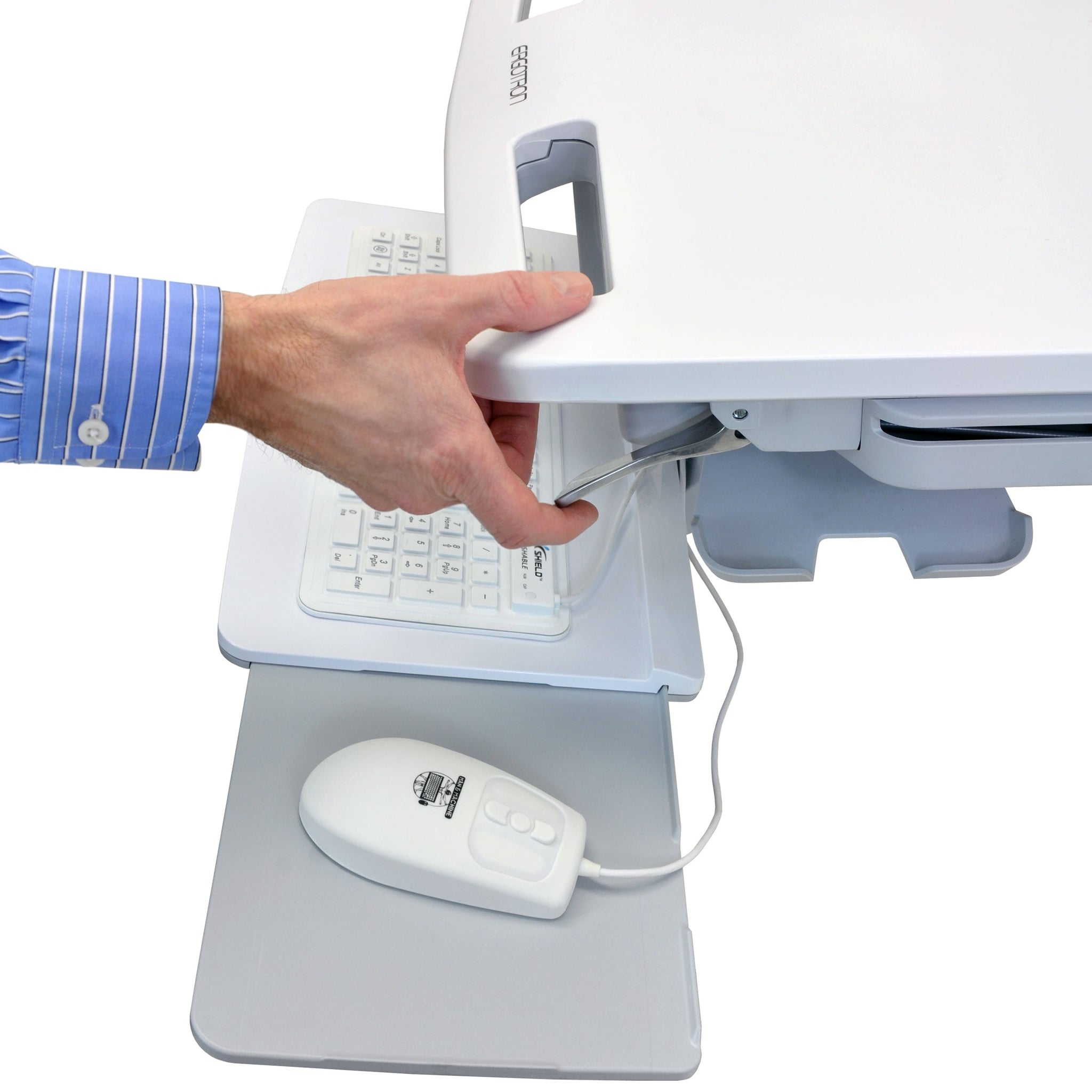

Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
Patented CF™ lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Safe
For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A
Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
Large, smooth worksurface; easy-to-clean design promotes infection control
Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
CPU lock provided inside the storage compartment for additional security
Designed to meet guidelines established by the American National Standards Institute for computer use

All the Details Covered
Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
Button for LED lights is located conveniently on worksurface
Rear basket keeps task-related items where they can be quickly accessed
Universal mounting slot for accessories and equipment
A unique cable management system conceals and organizes cords, making cleaning easy
Ships fully assembled and is easily accessible from container
Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
Four-port USB hub
Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
Pre-routed cables provide quicker integration with equipment
Integrated power outlets located within the cart

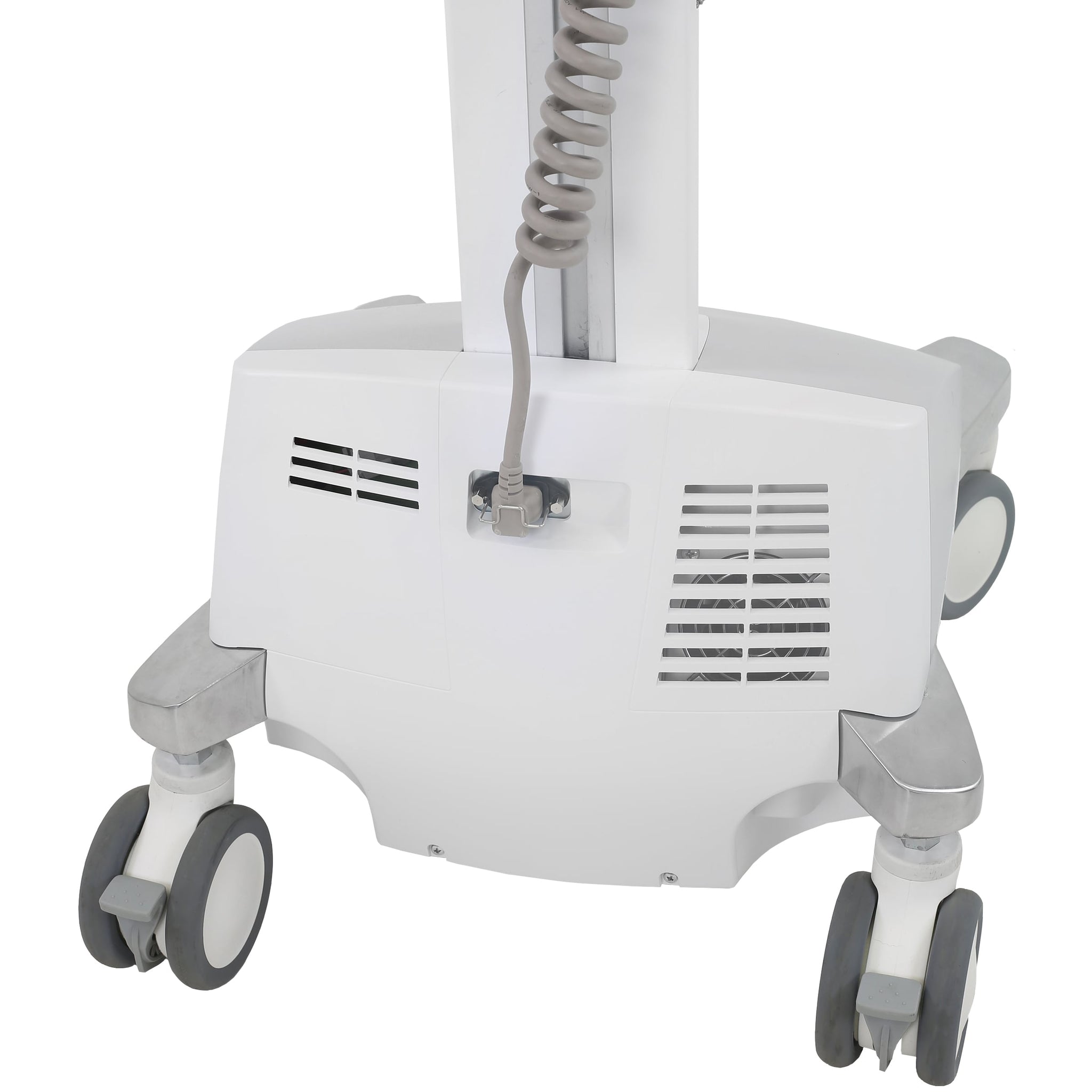

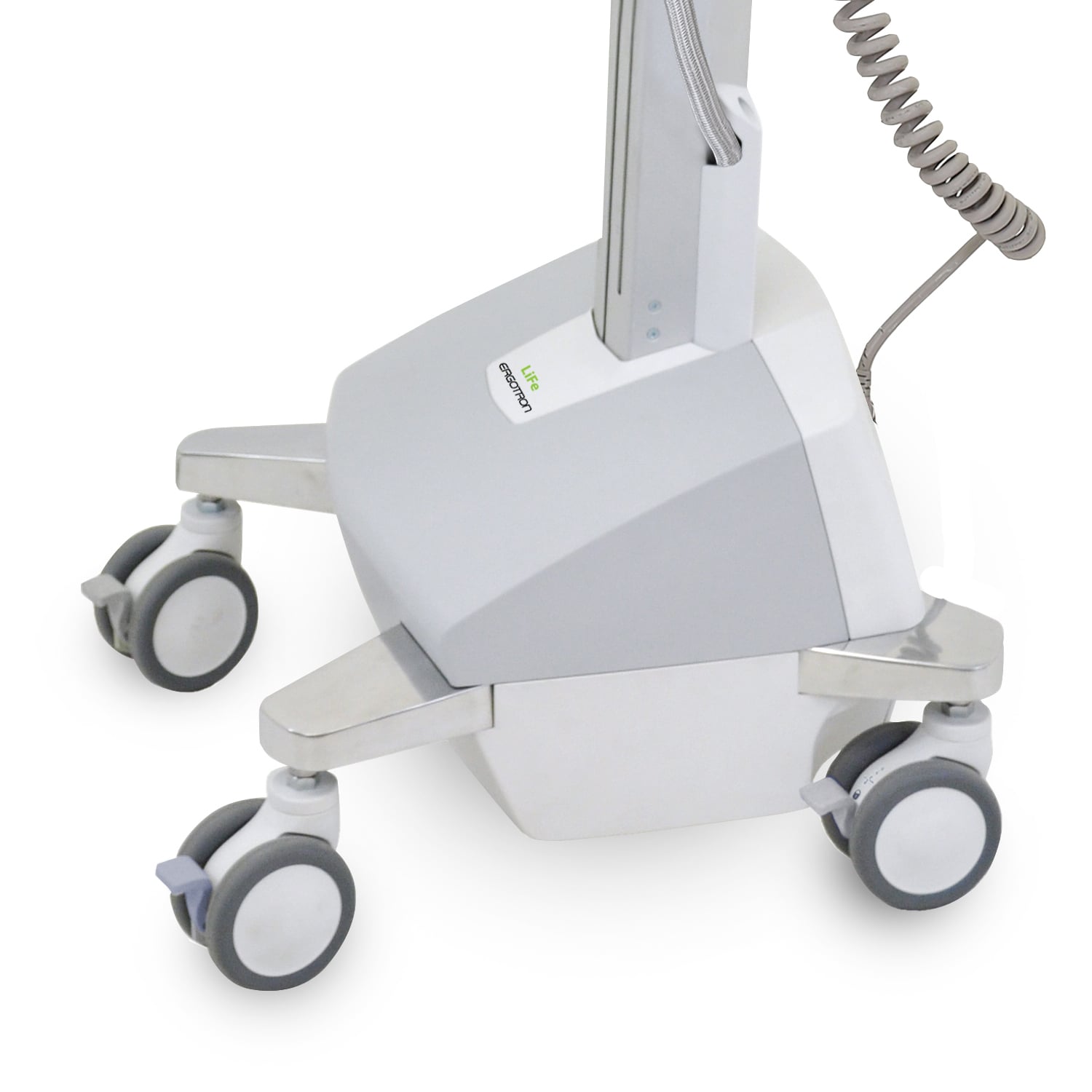

Four ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability

Compatibility and Dimensions
Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Output:
US/CA/MX = 120VAC/60Hz, 150VA, 150W
EU = 230VAC/50Hz, 150VA, 150W
UK = 230VAC/50Hz, 150VA, 150W
AU/NZ = 230VAC/50Hz, 150VA, 150W
CN = 220VAC/50Hz, 150VA, 150W
IN = 230VAC/50Hz/60Hz, 150VA, 150W
CHE = 230VAC/50Hz, 150VA, 150W
Grounded Plug:
US/CA/MX = NEMA 5-15P Hospital Grade
EU = European CEE 7
UK = UK BS 1363
AU/NZ = AS/NZS 3112
CN = GB2009-1; GB1002-1
IN = BS 546
CHE = SEV 1011
45Ah, 12V DC, Lithium Iron Phosphate (LiFe) battery
